EB75KD Typ2
Application range, designs
|
EC-type examination certificate |
EU-SG 490 |
|
Q+P total mass [kg] max. Q+P total mass [kg] min. |
3010 1288 |
|
Tripping speed [m/s] max. |
2,63 |
|
Guide rail head [mm] |
8-19 |
|
Minimum running surface width [mm] min. |
25 |
| Versions | Style | Guide [mm] | Rated speed [m/s] | Rope distance [mm] | Actuating bar | Download |

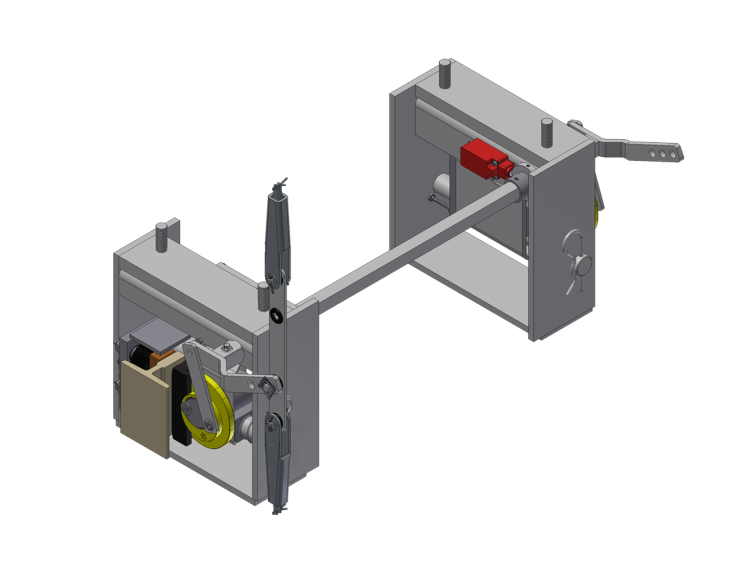

| Typ2-0-V1-0 | under the car | 8-19 | 215/235 | Inside |  |
|
| Typ2-0-V2-0 | under the car | 8-19 | 220/260 | Inside | |
|
| Typ2-0-V3-0 | under the car | 8-19 | >2,00 | 215/235 | Inside | |
Capacity range, diagram
Documentation, manuals
